TIER 1 SUPPLIER FOR OEM'S

Focus on design & production of E-Powertrain components to OEM's

NON-STOP R&D

Development of new cost-effective products for vehicles above 7.2T

IN HOUSE AUTOMATED PRODUCTION

Transition to fully automated electronics and mechanical production in-house

E-MOBILITY 2050

New E-Mobility Fields: Fuel Cells, Long Haul Transport, Agriculture, Marine Technologies


Induction Motors


Our 31 Series liquid cooled induction motor is designed for heavy duty direct driveshaft applications. Motor provides up to 1250Nm torque and 150kW at 400VDC.

Features

115 kg


3 Phase ACIM Liquid cooled


Inted encoder


Low torque ripple


Integrated tachograph sensor


Dual temperature sensors

Epoxy encapsulated stator



SAE1410 driveshaft flange



IP6k9k Protection class



92% Efficiency



Working temperature: -40 C - 85 C

Vehicle Control Unit


The HCU is designed for both pure EV and Plug-In hybrid applications. 4x CAN-bus controls the powertrain, vehicle safety systems, dashboard, climate control and other in-vehicle equipment operation.

Features

4 x CAN-bus, up to 1Mbps


18 x inputs


17 x outputs


Dual STM microprocessors


IP6k9k protection

IEC 62196 charging protocol



Smart diagnostics



CAN-USB programming



Climate control



Vehicle safety: ABS, VSC, ASR, LDWS.

Motor controller.png

3rd Gen Motor Controller

AC power delivery is implemented by liquid cooled IGBT module. EDS.33.12V Motor inverter utilizes Indirect FOC motor drive algorithm providing great torque response and efficiency.

Features

DC link voltage up to 480 V



Phase current 520 A RMS / 630 A Peak



DC link voltage up to 480 V



Phase current 520 A RMS / 630 A Peak

​

Active switching overshoot protection


Hardware short circuit protection

DC link current limiting


Up to 1 Mbps CAN bus communication


HVIL protection


ASM or PSM motors


Weight: 7.4 kg

CAN Bus Controller

CAN bus controller.png

The Vehicle CAN-bus controller is a universal Input/Output expansion
module. CAN-bus controller is used as e-brake controller, CAN-bus
converter, gearbox controller, etc.

Features

2 x CAN-bus, up to 1Mbps


4 x digital inputs


2 x N type outputs 1.0 A


3 x P type outputs 1.0 A


2 x H-Bridge outputs 15.0 A (30.0A peak)

STM microprocessor


IP67 protection


Smart diagnostics


CAN-USB programming

User Interface

LCD panel.png

Automotive / Industrial grade multi-touch capacitive LCD, IPS panel for
e-drive system control. Software and GUI design can be easily
modified for specific application. 2 Versions available - 7” and 9.7” GUI
screens.

Features

7” - 1024x600 16:9 LCS, IPS-24bit


10” - 1024x768 4:3 LCD, IPS-24 bit


9-24V Power supply


30C to +70 C operation.

Front panel IP65 protection

ARM Cortex A8 processor

​

USB software update


450 cd/m2 brightness


SD Card for data logging

CAN Bus Gateway

CAN bus gateway.png

The Quad-CAN bus gateway links the powertrain to OEM vehicle safe and comfort systems like ABS/ESP, EPS, EABS, LDWS, Immobilizer, Lane Assist, Climate Control, etc.

Features

4x CAN Bus up to 1 Mbit/s


4x Analog/digital inputs


4x Low power outputs


Scalable over UART

150kW Motor Controller

150kW motor controller.png

AC motor power delivery is implemented by liquid cooled IGBT module. EDS.23.12V Motor inverter utilizes Indirect FOC motor drive algorithm providing great torque response and efficiency.

Features

DC link voltage up to 450 V


Phase current 450 A RMS / 590 A Peak


Active switching overshoot protection


Dual IGBT driver power supply


Hardware short circuit protection

DC link current limiting



Up to 1 Mbps CAN bus communication



HVIL protection

​

Weight: 11.2 kg

Battery System

Battery EV sytem.png

ECE R-100.02 and ECE R-10.05 Certified automotive NMC battery
system for commercial vehicle applications. Integrated BMS and climate control ensures 2000+ charge cycles. 350 A contactors, MSD, HVIL safety and other necessary features for EV or PHEV applications.

Features

255 kg


Integrated BMS


CAN-bus control, diagnostics


16x Modules - 6 cells each (96 cells 360V)


37 kWh (36.20 kWh usable)


Dual range 500 A current sensor

25 G impact tested structure



IP6k9k Protection



Integrated Heater



Insulation resistance indication



HVIL detection

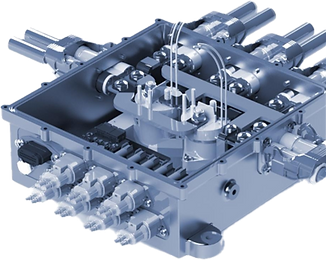

Power Distribution Unit

HV power distribution unit.png

ECE R-100.02 and ECE R-10.05 Certified automotive power distribution
unit with CCS fast charging. Integrated CCS fast charge controller
and contactor system is designed for 150kW DC input. Up to 5x ESS6A series battery systems

Features

8.4 kg


Integrated CCS controller


CAN-bus control, diagnostics


Up to 5 x ESS6A battery systems


Up to 185 kWh

300 A CCS charging input



IP67 Protection



7 x 30 A Fused power outputs



500A Contactors



HVIL detection

Battery Management Controller

Battery management controller.png

Robust automotive battery management system with integrated ECE R-100 certified leakage and HVIL measurement. Controlled by STM microcontroller and LTC6811 multicell battery monitors.

Features

Up to 216 cells in series (850 V)


12 Cells per module


Dual range 50 A / 500 A current sensor

CAN-USB user interface configuration



Cell voltage measurement 1.0 V to 5.0 V



Balancing current 70 mA
